Twin Racing Arcade Machine

Twin Racing Arcade Machine: The Facts First

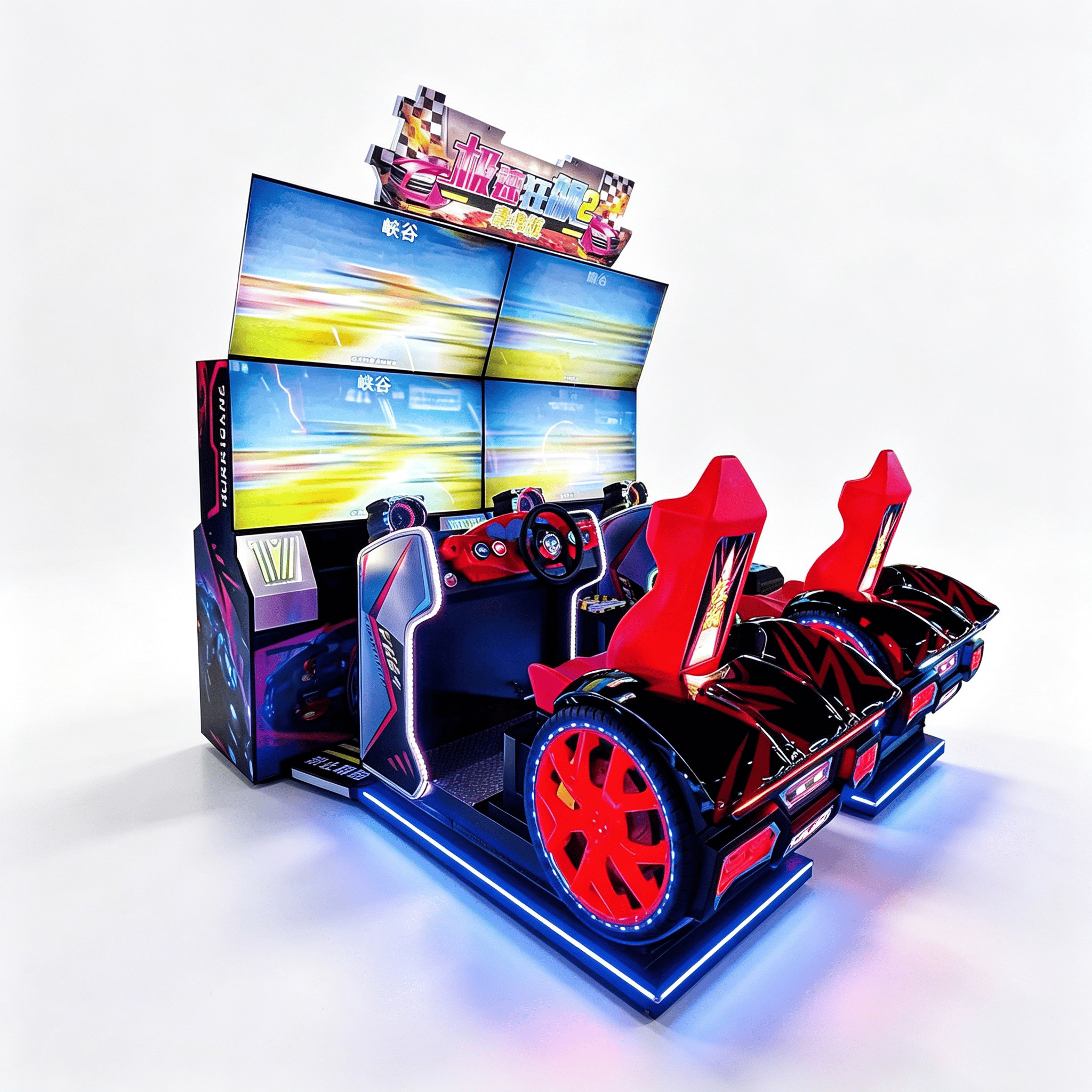

The Commercial Twin Racing Arcade Machine is a two-seat driving simulator: each driver gets a motion racing seat, a steering wheel console and a pedal set, and the two seats race head-to-head on a shared 55-inch HD display wall. The published set measures 2,880 × 2,560 × 2,900 mm — 7.37 m² of floor, 3.69 m² per driver — runs on AC 110 V / 220 V, ships in a wooden crate and carries a 12-month warranty. It is built for arcades, family entertainment centers, malls and theme parks, and it ships as OEM/ODM with custom cabinet colors, logos, game language and payment systems. Three numbers decide most purchase conversations about this machine: the 7.37 m² floor plan, the 2.9 m height against your building, and the two-seats-per-cabinet revenue math against single-seat cabinets.

What to Check Before You Order

Floor space

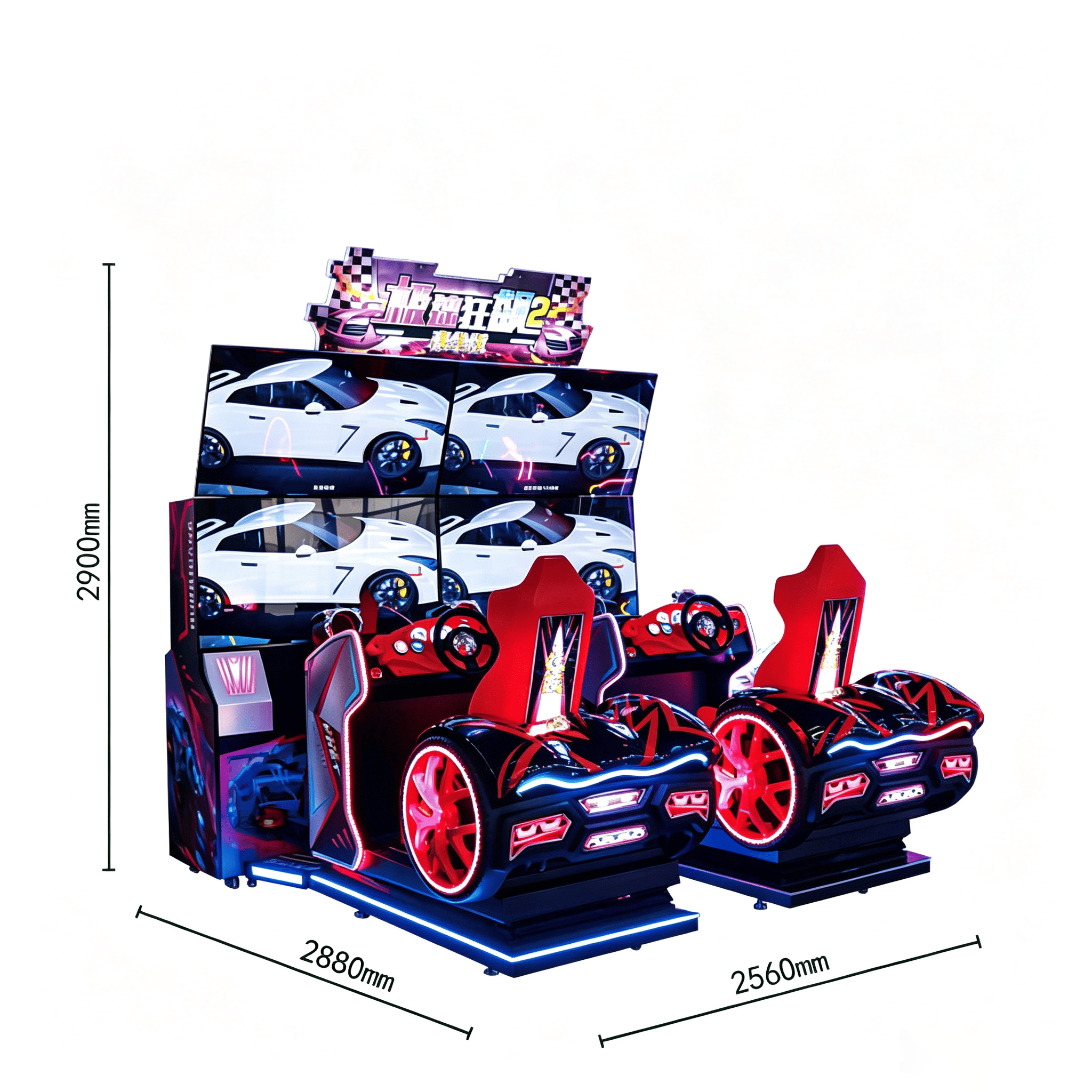

The published footprint is 2.88 × 2.56 m = 7.37 m², or 3.69 m² per driver. Neither figure includes the space players need to get in and out of the seats or queue, so plan for roughly 9–11 m² of dedicated zone. For scale: 7.37 m² is the same floor area as about eleven standard single-player claw cabinets at 0.67 m² each. This is an anchor machine — it earns its floor through two paying players per race cycle and the visual pull of a 2.9 m LED-lit cabinet, not through density.

Access route and ceiling height

At 2,900 mm tall, the assembled set does not pass a standard interior doorway (roughly 200–210 cm) and does not fit under the ceiling of most retail units either — it needs a venue with high clearance or delivery in sections with on-site assembly. It also does not travel assembled: at 2.88 m wide and 2.9 m tall, the set exceeds both the internal width (about 2.34 m) and the high-cube door height (about 2.58 m) of a standard shipping container. Measure the receiving route to the lowest obstruction — lighting track, sprinkler heads, ductwork, signage — and confirm the breakdown scope with the factory before booking the truck.

Power and electrical

The supply is AC 110 V / 220 V, so the set plugs into standard commercial power in most export markets. The rated power draw is [待填：额定功率]; on the WIDIN motorcycle racing set, which carries comparable motion hardware, the rating is 1,000 W, so plan one dedicated circuit per set until the exact figure is confirmed. The rated value covers the display wall, both motion seats, the LED system and the sound system running together.

Twin or Single-Seat Racing Cabinets?

WIDIN's racing range has no single-seat cabinet published, so this comparison uses the structural difference plus the site's own per-driver floor figures. A twin cabinet shares one cabinet shell, one display wall, one payment stack and one marquee between two drivers; two single-seat cabinets pay for two of each, plus the aisle between them. On floor, the twin runs 3.69 m² per driver — single-seat sit-down racing cabinets in the wider market commonly occupy about 1.5–2.5 m² per driver (industry range, not a WIDIN figure, so confirm against the specific model you are comparing). That means the twin is not the answer for raw floor efficiency. Its case is revenue per square metre: two paying players per race cycle from one payment path, one maintenance item and one attendant-free attraction, plus the spectacle value of a 2.9 m cabinet that a single seat cannot produce. Choose single seats when the plan is many small units on a tight floor; choose the twin when one anchor attraction should carry a racing zone.

How It Compares in the WIDIN Racing Range

Cabinet plan area excludes player standing space; power figures are rated rather than measured values, so treat them as a planning ratio rather than a bill.

The two large sets occupy almost identical floor (7.37 vs 7.36 m²), so the choice between them is gameplay format, not space. The car set gives each driver a seated racing position with a steering wheel and pedals — longer, more technical sessions, and the format returning players associate with driving games. The motorcycle set puts players in a riding position with a lower entry barrier for casual footfall. Venues running one of each is a common configuration, because the two attract different players rather than competing for the same one. Against the smaller twin-motorcycle set, this cabinet takes about 30% more floor in exchange for the larger display wall and the seated motion format.

Where This Machine Earns Best

The typical buyer is an FEC or arcade operator, a mall entertainment-zone manager, a theme park or resort project developer, or a distributor supplying these venues. What they share is a floor plan where one machine must justify 7+ square metres — which is what the 3.69 m² per driver figure is for calculating.

Build Quality and Service Life

The cabinet structure is steel with ABS panels, rated power supply AC 110 V / 220 V, and the set carries a 12-month warranty — published on this page, which is not yet standard practice across the category, so hold the supplier to it in writing. WIDIN rates the stable service life of this build class at 4–6 years, against 2–3 years for conventional workshop cabinets. Before shipment, every set runs a 72-hour continuous aging test at full load, with no exceptions in the factory's process. Cabinet steel is 1.2 mm reinforced, against the 0.6–0.8 mm common in the category, and powder-coated surfaces take about 8 additional hours of manual finishing per machine. These are the manufacturer's own ratings and process figures, published so buyers can compare them against other suppliers' claims rather than take "commercial grade" on faith.

Custom Builds and OEM Orders

OEM and ODM customization covers cabinet colors, brand logos, game language, game software, and payment systems. For export orders, the two customizations that matter most are artwork language — the unit shown in the photographs carries its domestic-market marquee, and export cabinets are produced with the buyer's target-market artwork — and payment hardware, which should match what the venue already runs (coin, bill acceptor, card reader, or cashless). Customized projects confirm final specifications before production, so cabinet design and electronic configuration are prepared to the agreed requirement.

Shipping, Packing and Installation

The set ships in a wooden crate. One arithmetic point shapes the whole shipment: at 2.88 m wide and 2.9 m tall, the assembled set exceeds both the internal width (about 2.34 m) and the high-cube door height (about 2.58 m) of a standard ISO container, so it cannot travel built — it ships broken down into sections for on-site assembly. Packed in wooden frames: 2 pcs: 125 × 185 × 155 cm; 2 pcs: 163 × 95 × 210 cm. Site requirements before the truck arrives: a receiving path wide enough for the largest section, ceiling clearance on the full route, a level floor, and the dedicated power circuit from the checklist above.

Frequently Asked Questions

How much does a twin racing arcade machine cost?

The FOB price range for this model is USD 5,215 ~ 6,705. The price moves mainly with the payment system (coin, bill, card, or cashless), the game software package, and the level of OEM customization. Ask for a quote with your quantity, destination country, and configuration — the freight component alone varies more between destinations than the option list does.

How much floor space does a 2-player racing simulator need?

The published cabinet footprint is 2.88 × 2.56 m = 7.37 m², or 3.69 m² per driver. That figure excludes player access space, so budget roughly 9–11 m² of venue floor for the zone. For comparison, 7.37 m² equals about eleven standard claw cabinets.

Will it fit through a standard doorway?

No. At 2,900 mm tall and 2,880 mm wide, the assembled set does not pass a standard 200–210 cm doorway, and it also exceeds the door height of a high-cube shipping container (about 2.58 m). It needs a venue with high clearance or delivery in sections with on-site assembly. Measure the route to the lowest obstruction — lights, sprinklers, ducts, signs — before confirming delivery.

What power supply does it need?

AC 110 V / 220 V, matching standard commercial power in most export markets. The rated power draw is 300w; plan one dedicated circuit per set, since the rating covers the display wall, both motion seats, the LED system, and the sound system together.

How big is the screen, and do both players share it?

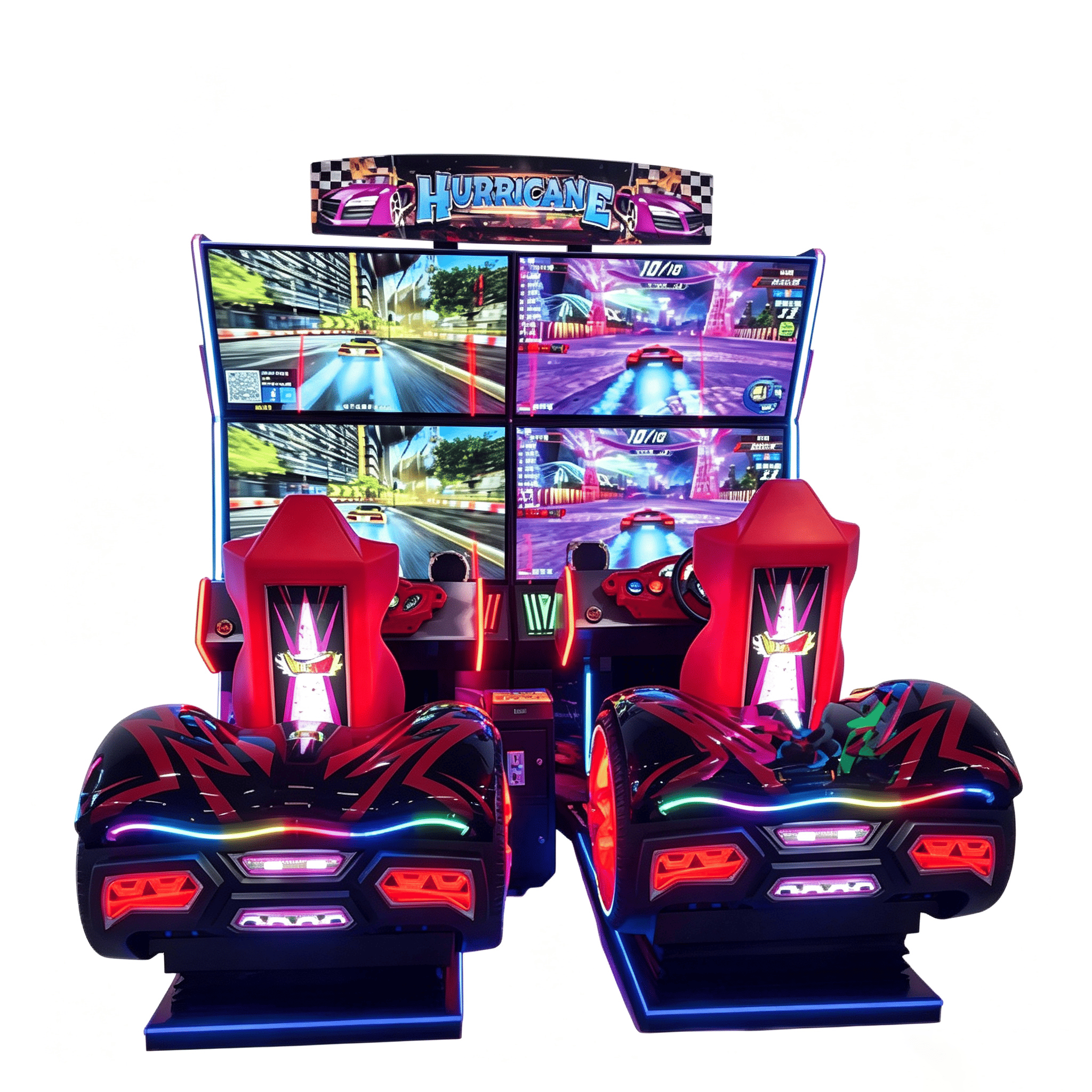

The specification lists a 55-inch HD LCD screen. If two drivers share one 55-inch 16:9 panel, each sees roughly 24 inches of screen width — comparable to a desktop monitor each. The product photographs appear to show a four-panel display wall (two panels per driver), so confirm the exact configuration with the factory before ordering; the screen count changes both the price and the freight volume.

What maintenance do motion racing seats need?

The routine is daily wipe-down of seats, wheels, and screens, weekly checks of fasteners, pedal linkages, and the payment path, and periodic inspection of the seat motion hardware and cable routing. Spare parts are supplied from the factory, and remote video support covers most diagnosis. The model-specific maintenance schedule is 2 weeks — ask for it with the quote.

How is it shipped, and how many fit in a container?

In a wooden crate, broken down into sections — at 2.88 m wide and 2.9 m tall, the assembled set cannot enter a standard ISO container. Packed in wooden frames: 2 pcs: 125 × 185 × 155 cm; 2 pcs: 163 × 95 × 210 cm; by floor area alone, a 40 ft container holds at most three assembled-set equivalents, so the real figure depends on how the sections stack.

Twin or single-seat racing cabinets — which should I buy?

The twin shares one shell, one display wall and one payment stack between two drivers, and runs 3.69 m² per driver against roughly 1.5–2.5 m² for typical single-seat sit-down cabinets (industry range — confirm per model). The twin is not the answer for raw floor efficiency; its case is two paying players per cycle from one payment path and one maintenance item, plus the pull of a 2.9 m anchor cabinet. Buy singles for dense rows on a tight floor; buy the twin to anchor a racing zone.

Can I customize the cabinet, branding and payment system?

Yes. OEM/ODM covers cabinet colors, brand logos, game language, game software, and payment systems, including cashless readers. Export cabinets are produced with the buyer's target-market artwork — the unit in the photographs shows the domestic-market version. Customized projects confirm final specifications before production starts.

What is the MOQ and lead time?

MOQ and production lead time for this model are 1 set and 1 week. Confirm both in the quotation — lead time moves with OEM artwork and payment-system configuration, not just quantity.

What warranty does it come with?

12 months, as published on this page. The warranty covers the set against manufacturing defects for one year from delivery; spare parts supply and remote technical support continue beyond it. Get the coverage scope — display, motion hardware, mainboard, payment system — in writing with the order.

Request a Quote

A quotation for this set needs three inputs: quantity, destination country or port, and configuration — payment system, artwork language and any OEM branding. Add your venue type, ceiling height, and floor dimensions if you want the delivery-route and floor-plan checks done against real numbers rather than the planning figures on this page.

— Chen, Founder & CEO at Guangzhou WIDIN Tech. On this machine, the number people underestimate is the height. At 2.9 m, it is the tallest cabinet in the WIDIN range, and no amount of budget changes a doorway after the crate is opened — measure the building before you measure the budget.
