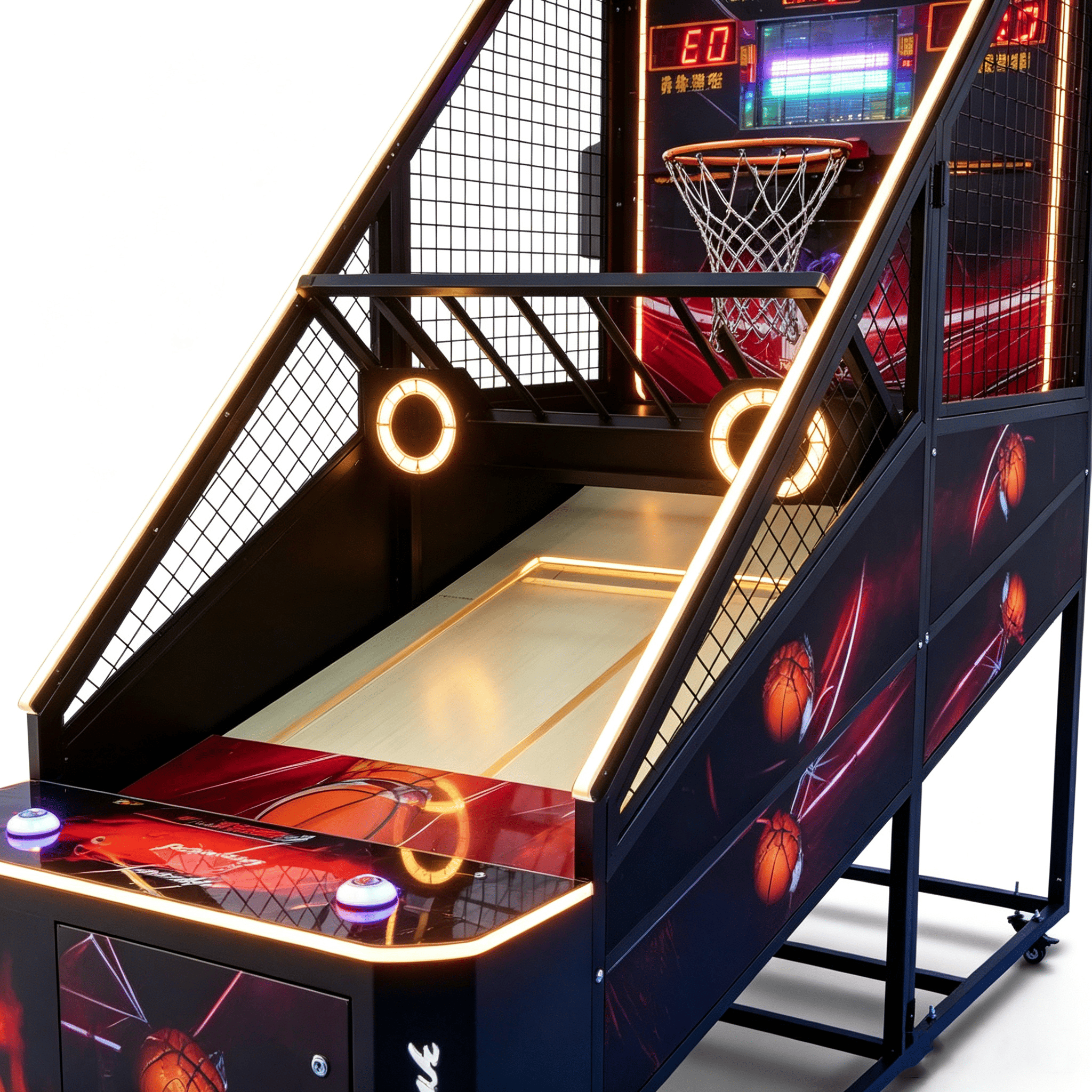

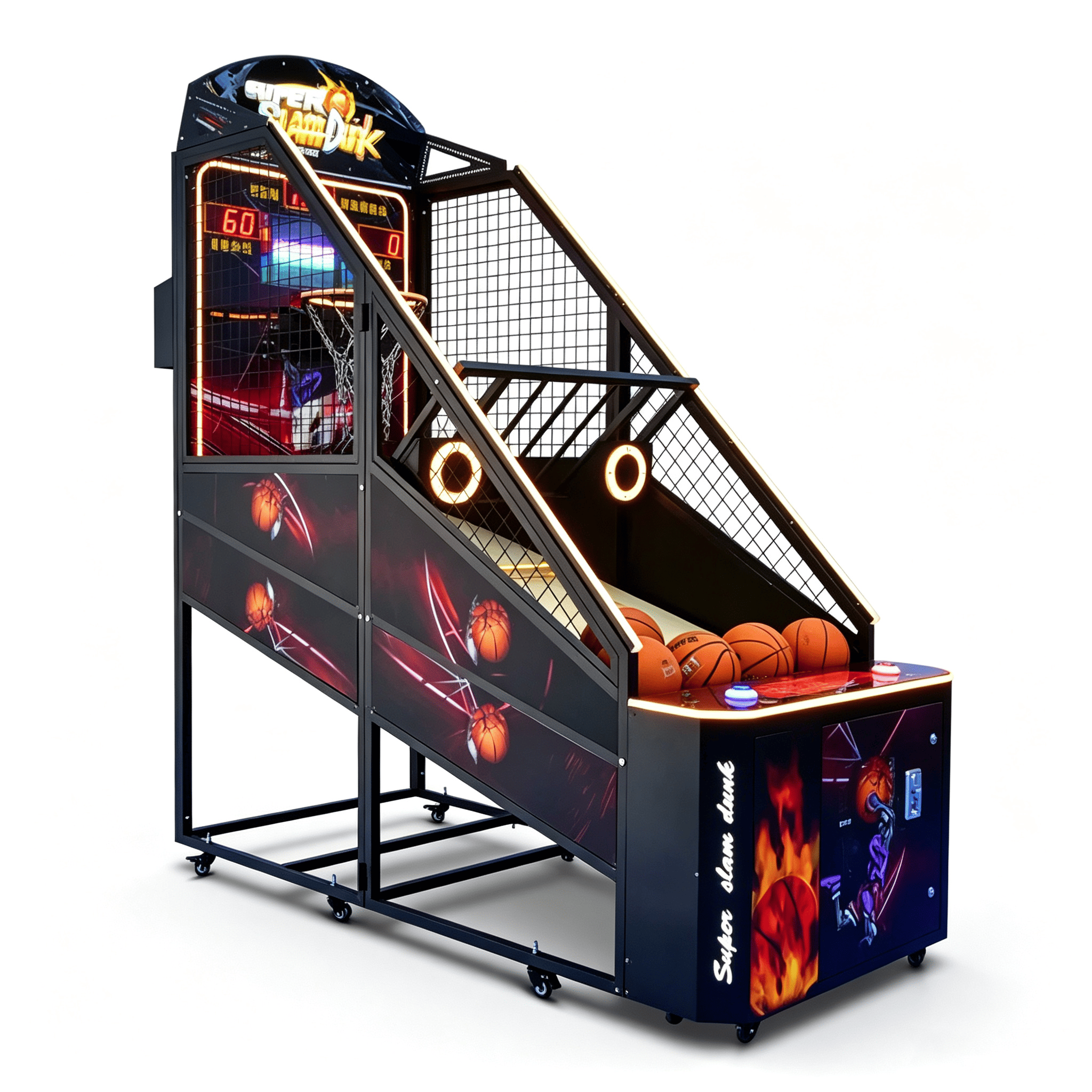

Large Indoor Basketball Arcade Game Machine | Commercial Basketball Shooting Machine

The WIDIN large indoor basketball arcade game machine is a full-size commercial shooting cabinet for arcades, family entertainment centers, and shopping malls. The cabinet stands on the floor at 100 × 248 × 260 cm (W × D × H) and weighs about 180 kg. Two site measurements determine whether it fits your venue: the ceiling height along the installation route and the clear space in front of the machine.

What to check before you order

Three site facts decide whether this machine works in your venue. All three are cheap to check now and expensive to discover after the container lands.

Ceiling height and the installation route

The cabinet is 260 cm tall. Purpose-built arcades and shopping malls usually clear that. Converted retail units, basements and older buildings often do not. Measure the lowest point along the whole route, not just the final position: ceiling, door frame, lift interior, stair turn, and any overhead ducting or signage. On a cabinet this size, access problems appear at the doorway long before they appear at the machine position. Re-crating a machine at the port costs far more than walking the route once with a tape measure.

Floor space: cabinet plus shooting lane

The cabinet itself takes 100 × 248 cm. Do not plan the position from that footprint alone. Players stand and shoot in front of the machine, and other visitors walk past while they do. Treat the spot as a zone, not a rectangle. As a working figure, allow roughly 2 m of clear shooting space in front of the cabinet and a further 1–1.5 m behind that for circulation. Venue layouts and local safety rules vary, so confirm the numbers on site.

Freight and landed cost

At about 180 kg in a cabinet this size, the machine ships as heavy cargo rather than as a parcel. Freight, export packing and destination charges move the landed cost more than most first-time buyers expect. Two inputs change a quotation the most: order quantity and destination port. Send both when you request pricing, and you get a landed figure instead of a machine price.

Why operators give this machine floor position

Basketball is one of the few arcade formats that makes people stand up, move, and compete in the open. That produces a specific venue effect. A machine people stop to watch recruits its own next player. A seated cabinet only earns from the person already in the seat.

The format is also easy to sell. Nobody needs instructions to shoot a ball, and a round is short, so the machine cycles quickly through peak traffic. That combination suits a spot on the main walkway where foot traffic is high, rather than a corner position that needs a sign to be found.

For distributors, a full-size basketball cabinet covers ground that compact claw and prize machines leave open. It is a floor anchor — the machine an operator buys when building a new zone, not when topping up a prize rack.

Build quality and service life

Two construction details separate a commercial cabinet from a cheaper build. Neither shows up on a spec sheet. Both show up in year three.

Every WIDIN commercial machine runs a 72-hour continuous full-load aging test before packing, with no exceptions. The cabinet is built from 1.2 mm reinforced steel, where the common industry range is 0.6–0.8 mm. WIDIN rates the stable service life of this build at 4–6 years, against 2–3 years for conventional workshop cabinets.

For an operator, that gap is not a spec line. It is maintenance spend and downtime on a machine that only earns while it is running.

Custom builds and OEM orders

Orders can be adapted before production starts. In practice, the changes buyers ask for most are cabinet artwork and colour, logo and branding, lighting, game parameters, and the payment system. Electrical configuration is set for the destination market.

Send venue size, target quantity and destination country with your enquiry, and the configuration can be confirmed before you commit to a production slot — including whether the standard cabinet suits the room at all. Whether the standard cabinet fits the room is worth settling before anything else on the project.

For how an order runs from drawing to container, see OEM / custom arcade machines.

Shipping and packing

Machines leave the factory in export packing: Standard soft packaging; whether to use a solid wood crate or wooden frame depends on the shipping method. Packaged dimensions: 125 × 110 × 245 (length × width × height).

Container loading: Max. 18 units for 40HQ

Mixing models inside one container is normal on arcade projects, and it usually lowers the freight cost per unit.

For wholesale and project buyers, WIDIN handles configuration confirmation, pre-shipment testing, export packing, bulk production, and shipping coordination. See how the factory works.

Frequently asked questions

What are the dimensions of this basketball arcade machine?

The cabinet measures 100 × 248 × 260 cm (width × depth × height) and weighs approximately 180 kg.

How much ceiling height does the machine need?

The machine stands 260 cm tall, so the ceiling at the final position has to clear that. More often, the real constraint is the route in — door frames, lift interiors, and stair turns. Measure the lowest point on the way to the position, not only the position itself.

How much space should I reserve in front of the cabinet?

Plan the 100 × 248 cm cabinet footprint plus clear space in front for the player and a path past it for other visitors. A working figure is about 2 m for shooting and 1–1.5 m for circulation, but confirm against your own layout and local rules.

Is this machine suitable for indoor commercial use?

Yes. It is specified for indoor arcade and commercial entertainment applications such as arcades, family entertainment centers, and shopping malls.

Can it be installed outdoors?

No. This model is specified for indoor commercial use and is not built for outdoor installation or weather exposure. If you are planning an outdoor or semi-outdoor area, tell us the site conditions, and we will confirm whether a different configuration is possible.

Can I customize the cabinet graphics and branding?

Yes. For project and bulk orders, cabinet artwork, colour, customer logo and branding, lighting, and game parameters can be adjusted before production. Electrical configuration is set for the destination market.

Do you supply direct from the factory for wholesale and project orders?

Yes. WIDIN supplies arcade equipment factory-direct, including configuration confirmation, pre-shipment testing, export packing, bulk production, and shipping coordination.

What payment system does the machine use?

Coin acceptor, bill validator & card reader available. Configurable for the target market.

What is the minimum order quantity and lead time?

MOQ is negotiable; production lead time is 1 week.

Does the machine ship assembled?

Shipped as complete machines

Request a quote

To quote this machine properly, we need three things: order quantity, destination country and port, and the venue's ceiling height and floor plan. With those, we can confirm whether the standard cabinet suits your room, work out the landed cost, and give you a production schedule.

Send your requirements to WIDIN for basketball arcade machine pricing, customization and export support. You can also browse the full basketball arcade machine range or read the frequently asked questions page.

Reviewed by Chen, WIDIN mechanical engineering team.
"On a cabinet this size, we size the crate and the door clearance before we talk about price — most access problems are found at the doorway, not at the machine position.]"
